VIS 300/350 video inspection camera Wöhler

Description

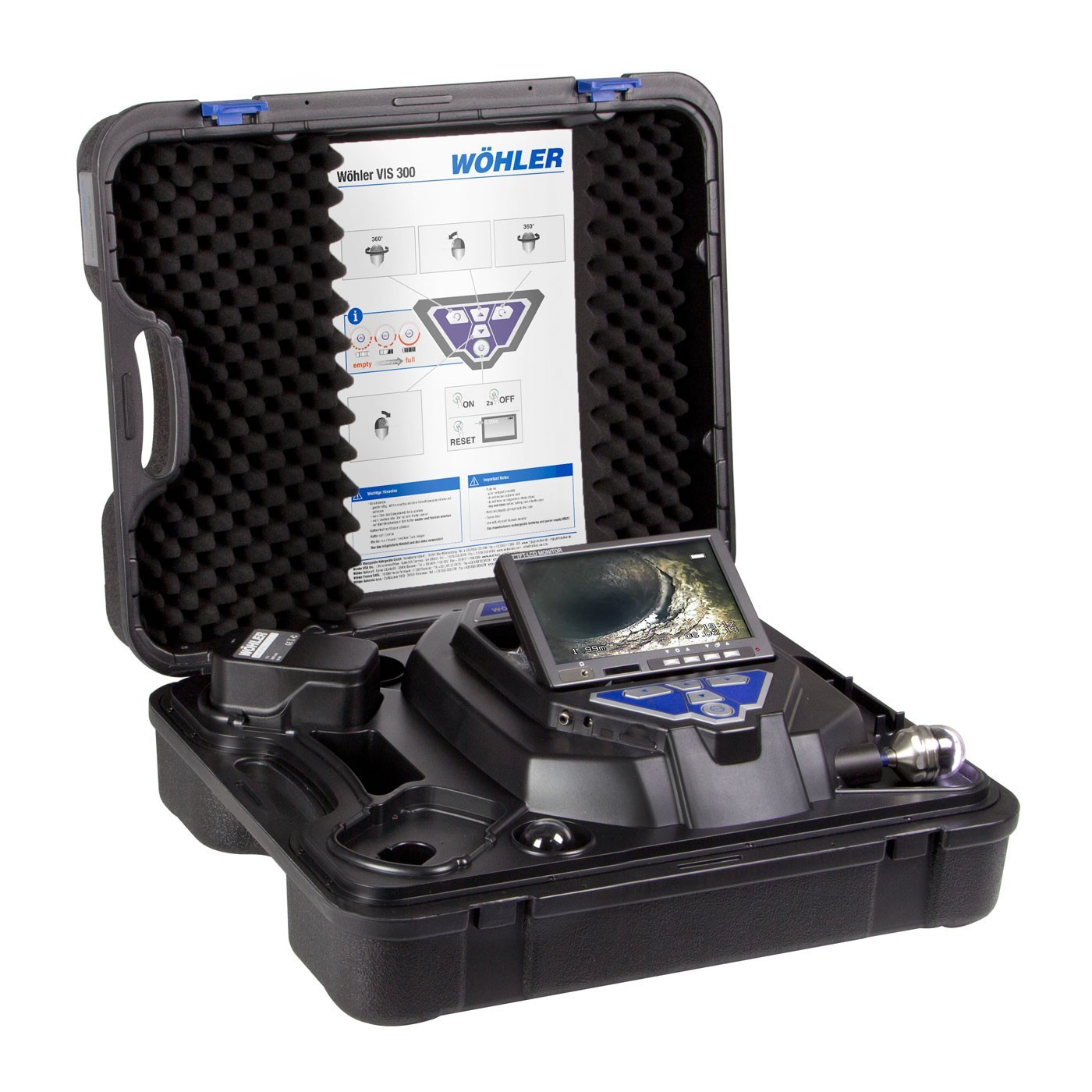

VIS 300 / 350 video inspection camera Wöhler with ithe camera’ s nteligent headguides and tracks. The camera iscompact and safely stored in a plastic case for transport and mobility.

System Comprising 20-metre push cable z drum, colour header cameras s diameter 40 mm and large colour monitor.

Here is see also a typical Wöhler’s control panel, which ensures easy operation of the camera head: the camera rotates 360°, tilts 180° and offers the best possible illumination for an all-round view of the inside of the tube.

Especially practical: the Home function after scrolling and tilting s to the simple by pressing at button automatically settled such as cameras v directions straight.

The camera can record videos, that he sees while travelling along the route. Several tight 87-degree bends on the track are no obstacleeither. When you discover an injury, one quick press of a button is all it takes, to“take” and save a photo.

The display shows the actual number of counters and the position of the head. This is very helpful, for example, in large-scale pipeline networks. At monitor are All Time Retrieved from above and See part of tubes and for how many degrees is camera Guided by Up or down.

By locator Wöhler L 200 is also available and simple wireless location detection.

Benefits

Powerful – thanks to the optimum illumination of the colour camera head and the optional supplementary illumination, the camera delivers exceptionally sharp images from the area of view, even in the dark.

Home/Position display and cat – nThe display shows the head position in addition to the digital counter count. The Home button returns the camera head to its original position.

Localisation – gThe Wöhler camera lava is equipped with a transmitter as standard, Therefore her is can be easily locate z
locator Wöhler L 200.

Diversity – with switchable Wöhler camera heads pipes from Ø 40 mm to Ø 200 mmcan be easily inspected.

Flexible – with a colour camera head, which can be rotated 360º and swivelled 180º, without problems master 87º turns.

Panoramic view – from 20 m long retractable stick and rotatable colour head cameras to you at Home Connection No or missed none thing.

Use

Damageanalysis and inspection:

• kanalysis tubes from Ø 40 mm
• Home connections to Ø 200 mm
• exhaust systems from Ø 56 mm
• air channels ventilation systems
• intermediate ceilings, cavities, shafts

Functionality

• CCS(Crystal Clear Screen) imagetechnology
• waterproof, bright and flexible colour camera head with Ø 40 mm and length 60 mm
• 360° swivel and 180° rotatable optics – even the smallest errors are not hidden
• storage recorded videos and photos at tab SD s capacity 4 GB
• embedded transmitter v head of the camera for search
  z locator Wöhler L 200

• electronic view position and angle of the head of the camera at screen
• Feature Home for Settlement Headers cameras v flat position – view parallel s ground
• electronically counting z meter s display at monitor
• powerful colour monitor TFT for excellent pictures
• rotatable and removable monitor
• independently operation from electricity mains z lifetime lifetime up to 240 minutes z two interchangeable batteries
• mobile complete equipment v robust carrying case z double shell

Data processing

• Easily record and store photos and videos on a 4 GB SD card for documentation and archiving for you and your customers
• video output

List of accessories: here

Sets

• different kits are available in the Documentation section.
