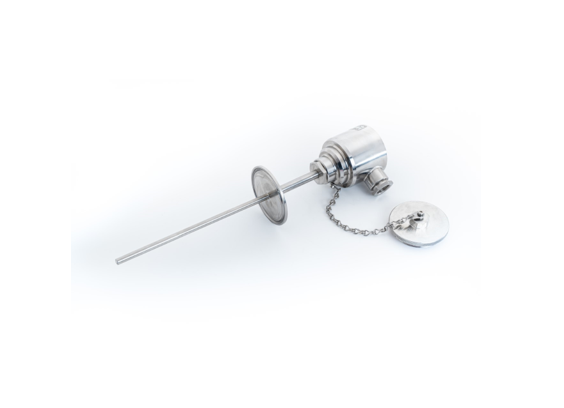

TTU-HIG-010 industry temperature sensors (RTD), thermowell with three clamp process connector

Description

TTU-HIG-010 industry temperature sensors (RTD) with three clamp process connection, in a protective housing(Thermowell with measuring insert), are designed for temperature measurement in hygienic applications (e.g. sanitary applications, food and beverage industry, Bio pharmaceutical industry…), which can be supplied with special surface treatment (parts in contact with the medium).

Temperature range

• recommended use for temperatures from -50 °C to 200 °C

Applications

• sanitation applications,
• food and drink industry
• the pharmaceutical industry,
• production of active substances,
• Biotechnology and Life-Science Engineering,
• cheese and dairy factories,
• breweries.

Special features

1. Compact design for space-saving installation.
2. Materials and surface finish quality in accordance with hygienic design standards.
3. A three-clamp connector is fitted, allowing the user to quickly assemble and disassemble, especially for cleaning purposes.

Choice of implementation

Select the desired design using the code list in the Documentation tab, or call us on 02 62 96 720 or write to us on the Enquiry form and let us help you make your choice.

We recommend a mounting length of at least ten times (10x) the pipe diameter, shorter lengths have a negative effect on the accuracy of the measurement.

The connection head can be equipped with a measuring transducer with analogue or digital output.

The sensors can also be Ex or ON SITE CAL for calibration directly in the production process.

Benefits of industry versions

High accuracy, long life and stability. All this is achieved through strict quality control of materials and processes.

Thermowell version

Temperature sensors with protective housing or thermowell versions have a replaceable measuring cartridge inside for easy replacement or calibration without interrupting the process.

The protective neck protects the connection head and the converter from higher process temperatures.

The thermowell itself can be further protectedwith PTFE orsimilar protection for aggressive media. All external parts are welded to the housing.

Protection for aggressive media

The process connection can be protected with PTFE protection for aggressive media, and other parts of the housing if required.

TTU-HIG-010 in ON SITE CAL and EX versions

For calibration directly in the production process, we produce the TTU-HIG-010
in ON SITE version
.

For use in EX rooms/areas we manufacture/supply the TTU-HIG-010
ATEX certified
(Zone 2 with EX transducer, Zone 0 and 1 with additional barrier).

Calibration

All temperature sensors can also be ordered
with accredited certificate
or with verification only in the desired range, and all can be ordered custom-made.

Custom

All temperature sensors can be made to your specifications and requirements. The most common designs are presented on the website, but in practice, production is mainly made to order.

Call or email us and we will help you determine/choose the most suitable implementation for you based on your process requirements.

Standard delivery time is 3 working days, urgent deliveries within 24 hours (emergency) are possible .

How to order a sensor?

From the Inquiry box, please send your request, specifying the operating temperature, the desired dimensions and the intended use. Don’t forget your phone number and email address.

We will call you to confirm your offer before implementation.

NO WORries: we won’t do anything without your prior approval.

You are invited to read

Total cost of ownership – ELPRO LEPENIK & CO. d.o.o.

TTU-HIG-010 industry temperature sensors have a 5 year manufacturer’s warranty and are made in Slovenia.
