TR10-B resistance temperature sensor, thermowell WIKA

Description

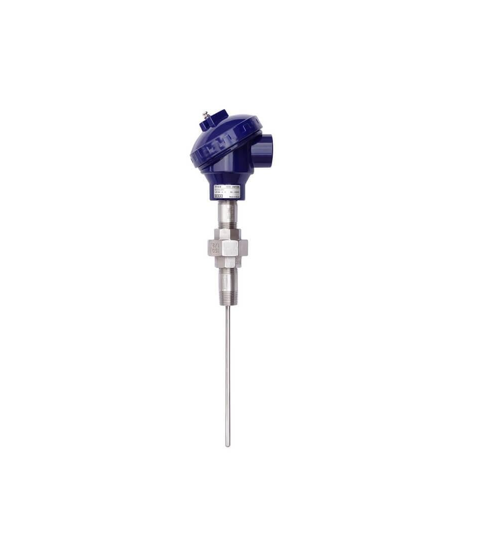

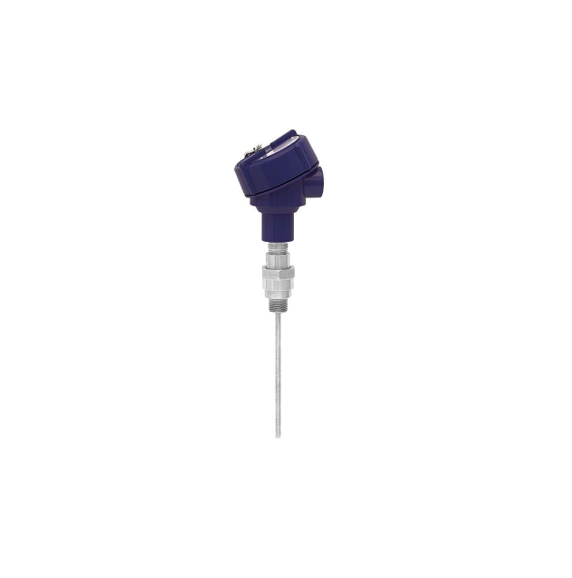

The thermowell WIKA TR10-B resistive temperature sensor with connection head and process connection is designed and adapted to existing thermowell housings.

The resistive temperature sensors in this series can be combined with a large number of protective recess designs.

Operation without a protective cartridge is only recommended in certain applications.

For temperature sensors, there is a wide range of possible combinations of Pt100 or Pt1000 sensor, connection head, insertion length, neck length, connection to temperature sensor, etc.;

• suitable for all insert sizes and applications.

Optionally, analogue or digital converters from the WIKA series can be integrated in the TR10-B connection head .

Main features

• measuring range: -196 … +600 °C
• for installation in all standard versions of protective recesses
• spring-loaded measuring insert (replaceable)
• Sensor: Pt100 or Pt1000
• Explosion-proof versions (ATEX)

Technical features

• Sensor: 1x Pt100, 4-wire
• Sensor accuracy class: class A, IEC 60751
• temperature range of the selected class: -30 … +300 °C
• head/housing: BSZ, aluminium, ball-shaped, folding top
• cable input: standard
• thread size: cable entry M20 x 1.5
• Connection to the door hose: M24 x 1.5
• Door tube: D = 12 x 2.5 mm (DIN 43772)
• Neck length: [MH/N] 150 mm (approx. 6 inches)
• Diameter measuring insert: 6 mm
• measuring insert for jacket material: stainless steel 1.4571

Models

Use

• mechanical engineering, plant and vessel construction
• Energy and power plant technology
• chemical industry
• Food and drink industry
• sanitary, heating and air-conditioning technology
