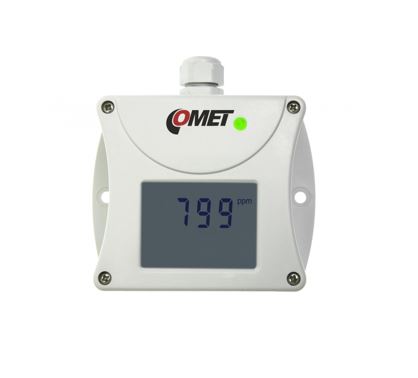

T5140 CO2 space transducer (with 4 … 20 mA output) COMET

Description

T5140 A 4 … 20 mA output CO2 space transducer in a durable and compact housing.

The converter has a large two-line LCD display that can be switched off. The output value is set by the user.

A visual display of the CO2 concentration in the air:

• green: CO2 concentration 0 … 1000 ppm
• bright yellow: CO2 concentration 1001 … 1200 ppm
• illuminated red: CO2 concentration 1201 ppm or more

Features of the T5140

CO2 sensor

• measuring range: 0 … 2000 ppm
• Accuracy: ±50 ppm + 2 % of reading at 25 °C and 1013 hPa
• resolution: 1 ppm

GENERAL TECHNICAL DATA

• ambient temperature: -30 … +60 °C
• Output: 4 … 20 mA
• Power: 9-30 V DC
• Protection class: IP 30
• dimensions: 88,5 x 94 x 39,5 mm
• weight: 145 g
• Warranty: 3 years
• Standard: CE
• Set includes: the T5140, user manual, traceable calibration certificate, free TSensor software to configure the transducer

Areas of use, applications

• building management,
• colleges, universities,
• conference rooms, hospitals, cinemas, theatres,
• warehouses,
• production.

Configuration software is also available.

You can find much more useful information in the Documentation tab.
