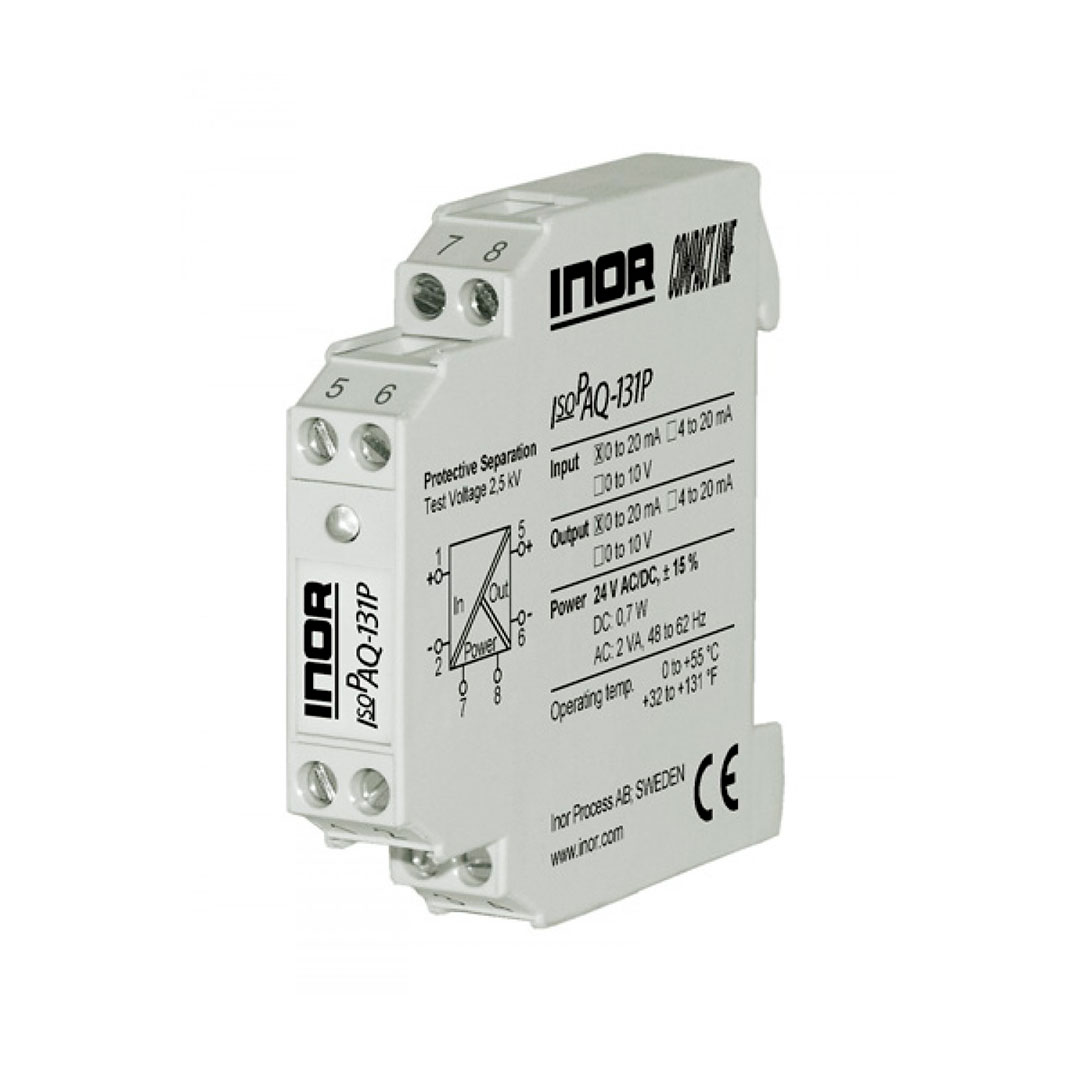

IsoPAQ-131P isolation converter for unipolar current and voltage signals INOR

Description

The IsoPAQ-131P isolation converter for unipolar INOR current and voltage signals with fixed range is used for isolation and conversion of 0 … 20 mA, 4 … 20 mA and 0 … 10 V unipolar signals.

In cases where only one signal combination is used, the IsoPAQ-131P is the most economical solution. High reliability and safe separation are additional features that ensure the safe operation of the system.

Features of IsoPAQ-131P

• 3-input isolation:
  protection against false measurements due to parasitic voltages or earth loops

• fixed areas:

  Ready to use without any settings

• safe isolation according to EN 61140:
  design and high level of isolation (3 kV) provide protection for service personnel and lower level equipment against unacceptably high voltages

• compact DIN-rail mounting:
  11.2 mm housing in combination with very low self-heating allows space-saving (˝high-density˝) mounting

• excellent reliability:
  low self-heating due to patented high-efficiency power supply ensures long-term reliability and stability


Technical features

• response time: < 5 ms
• test voltage: 2.5 kV, 50 Hz
• storage temperature: -35 °C … +85 °C
• Installation depth: 60 mm
• Type: active, 1-channel

ELPRO Lepenik offers technical support (TP-1, 30 min) and calibration.
