2220 9670 temperature sensor thermocouple (TC) portable, for asphalt

Description

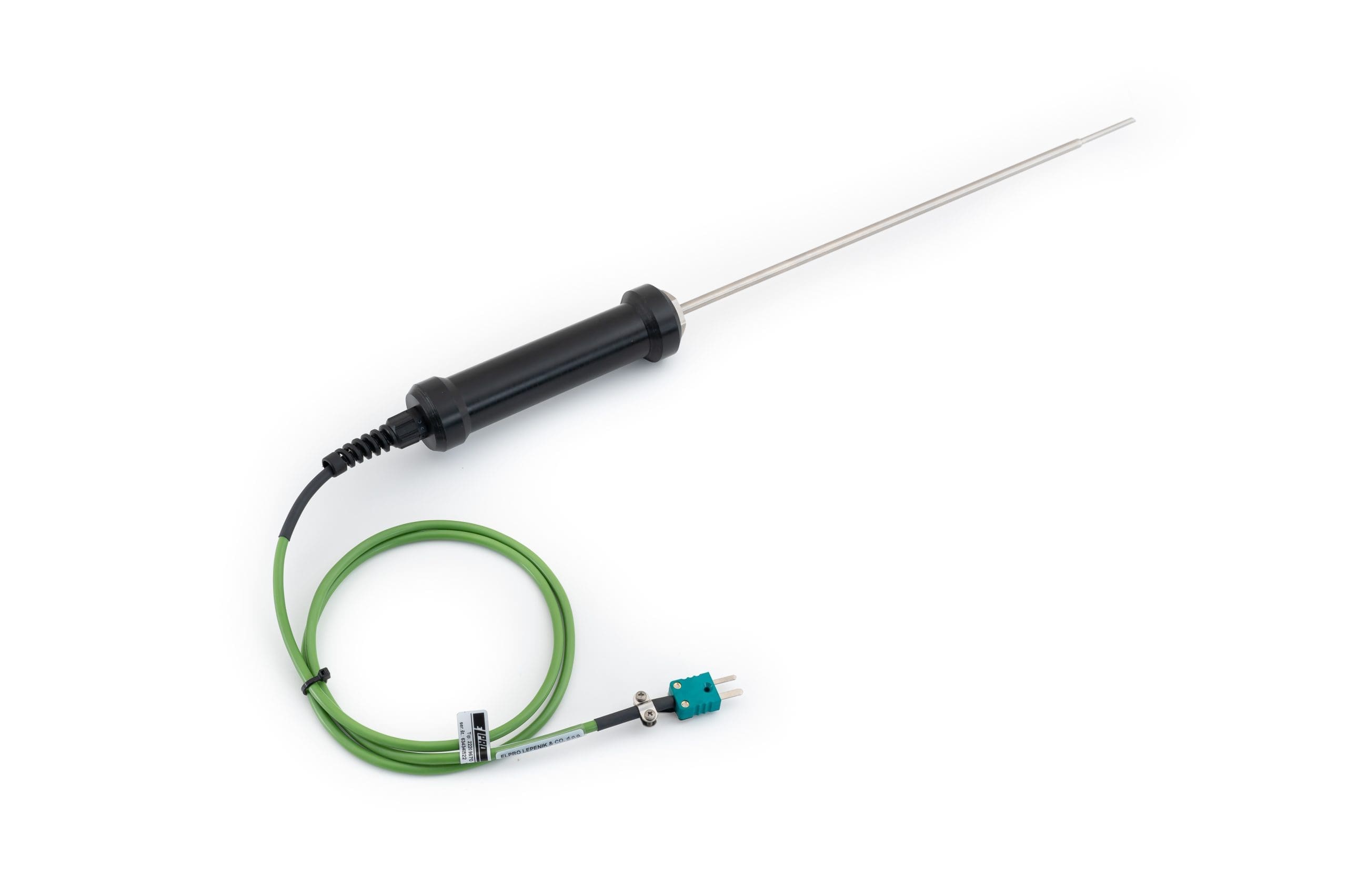

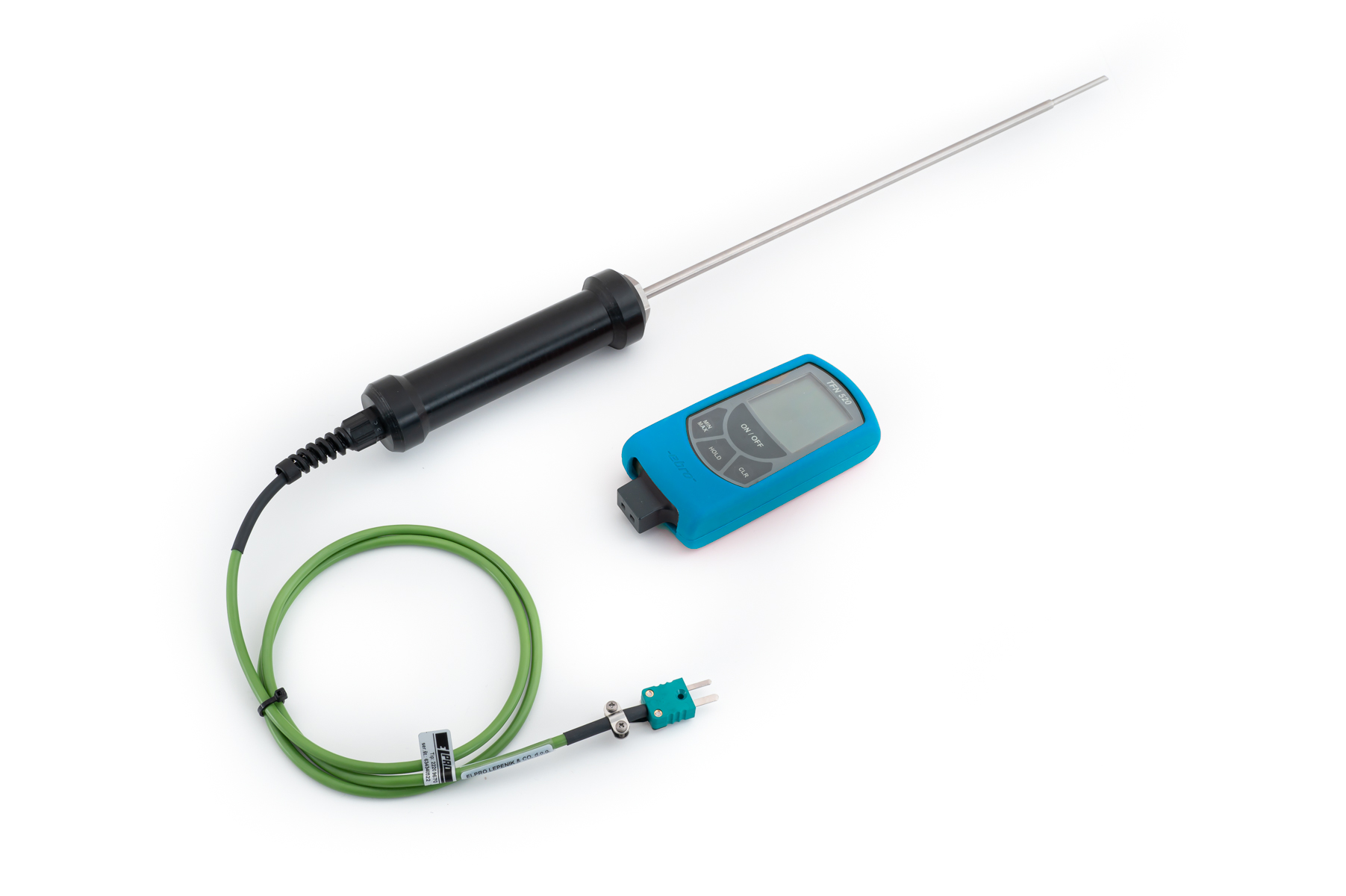

2220 9670 Temperature Sensor Thermocouple (TC) portable, for asphalt is a puncture-type portable thermocouple for temperature measurement, with fast response time, usable up to 400 °C.

2220 9670 Thermocouple (TC) temperature sensor with PVC HEAVY DUTY handle is basically a classical pin-prick temperature sensor. Its special features include materials fully suitable for the asphalt industry, a special PVC HEAVY DUTY handle and a special tapered HEAVY DUTY tip for faster response.

Features

• measuring element: NiCr-Ni thermocouple, type “K”, class 1 according to SIST EN 60584-1:2015
• Tapered HEAVY DUTY tip for faster response
• length l = 350/400/450/500 mm or as required
• Handle PVC special HEAVY DUTY version
• Connecting cable l = 1000 mm or optional
• with thermometer connector
  TFN 520-SMP
  without or optional
• Sensor operating temperature T-valve: -200 … +400 °C, at handle max.: +80 °C

Implementations

The designs themselves are always tailored to the user’s wishes:

• diameter
• length and shape of handles
• any length of connection cable
• made to your specifications

Adaptation does not mean paying more. These versions are always made to order and can be highly customisable, even in different price frames. The most important thing is results, reliability and longevity.

Calibration

Temperature sensors can be calibrated after manufacture to provide you with
accredited calibration certificate.

Custom

All temperature sensors can be made to your specifications and requirements. The most common designs are presented on the website, but in practice, production is mainly made to order. Call or email us and we will help you determine/choose the most suitable implementation for you based on your process requirements. Standard delivery time is 5 working days, urgent deliveries within 24 hours (emergency) are possible.

Temperature sensors have a 5-year manufacturer’s warranty and are made in Slovenia.

Please call 02 62 96 720 to arrange a suitable arrangement for you.

Other designations: 22209670, 2220_9670, 2220-9670
